Standout Features
High speed CMOS image sensors are available in either monochrome or color versions each with a recording speed of 1080 fps at 1920 x 1080 or upto 38,400 fps at a reduced resolution of 1920 x 30 or upgrade to a faster recording speed of 2160 fps at 1920 x 1080 or upto 76,800 fps at a reduced resolution of 1920 x 30.

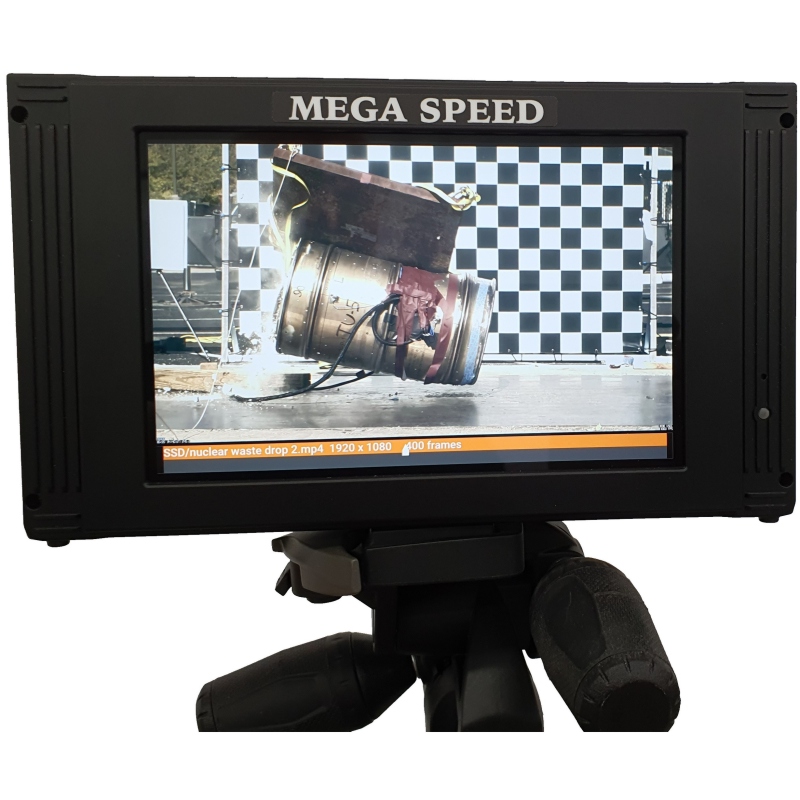

Large 7 inch 1080P high resolution multi-touch display screen. Clearly see key points of interest in your recorded video. The MAX V1 screen is 2 to 5 times higher resolution compared to the other portable camera screens. The MAX V1 screen is large enough to analyze, edit, compress and archive your high speed video right on the camera
Convenient multi tough display screen with pinch zoom and double tab controls for zooming in on key points of interest or adjusting the screen brightness.
16GB or 32GB high speed RAM as well as either 1TB , 2TB or 4TB Enterprise class solid state NVME drives that can save HD quality video at high speed for minutes or hours without stopping. Every press of the record button while in Streaming mode permanently saves the high speed video in real time.
High capacity swappable 5000 mAh battery for extra reserve capacity.
Custom cable sets have all the standard I/O ports to accept incoming triggers, sync signals, ADC data and IRIG time codes for you every possible application.
Convenient DisplayPort for applications that require an external monitor feed.

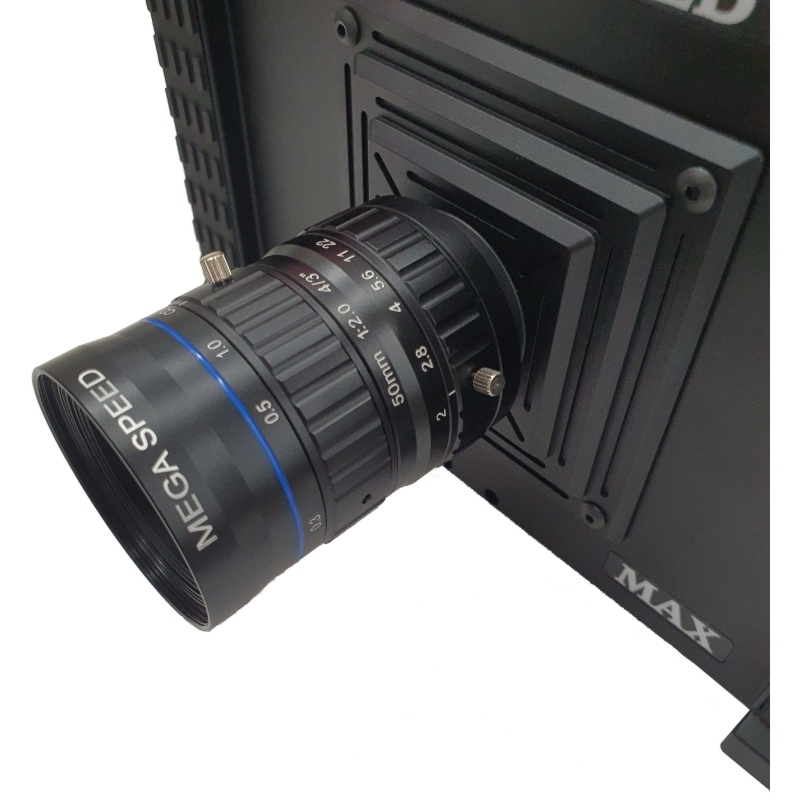

lens mount options are available. Order either a “C” mount or a m4/3 mount or various “C” mount to “F” mount converters
Specifications
| Sensor Specifications And Exposure Control |
|---|
| CMOS 4/3 image sensor. Available in either monochrome or color versions |
| 1920 x 1080 pixels maximum resolution |
| 1920 x 8 pixels minimum resolution |
| 1000 fps maximum speed at 1920 x 1080 pixels |
| Image size is software adjustable in 128 x 2 segments |
| 10 µm x 10um pixel format |
| Software adjustable global shutter down to 2 µs in 1 µs step |
| Automatic electronic exposure control or manual exposure control |
| Spectral response is 400nm to 1000nm peaking at 550nm |
| ISO comparative value is 10,000 for monochrome sensors |
| ISO comparative value is 5,000 for color sensors |
| 8 bit and 10 bit pixel bit depth |
| Average full well capacity 20,000e |
| Camera Inputs |
|---|
| IRIG time code in via multi pin connector |
| Sync in signal via multi pin connector |
| Multi channel data acquisition for 0 to 10 VDC levels via multi pin connector |
| Trigger in via multi pin connector |
| DC power supply jack via 2.1mm plug |
| Marker In via multi pin connector for frame tagging |
| 1 Gigabit 45 jack for Gigabit camera control |
| Video Output |
|---|
| Live stream to PC via Gigabit connection |
| 1920 x 1080 DisplayPort 60 fps |
| Camera Input Protection |
|---|
| Reverse input voltage protection |
| ESD circuitry protection |
| Camera temperature monitor |
| Camera voltage level indicator |
| Maximum Recording Speed And Resolution |
|---|
| 1000fps at 1920 x 1080 |
| Stream time lengths to camera SSD are frame rate and image size dependent |
| PC Requirements ( if you intend to control the camera with a Gigabit Ethernet connection) |
|---|
| Mega Speed Camera Control software required |
| Modern day PC running Windows 10 or 11 |
| 500GB minimum hard drive |
| 8 GB PC RAM |
| 1 GB Ethernet chip-set |
| 1 RJ 45 connection for GB connection to camera |
| USB 2.0 / 3.0 USB ports |
| CAT6 cable for camera connection |
| 17″ 1920 x 1080 monitor resolution |
| Lens Mount |
|---|
| C mount |
| Micro 4/3 mount |
| Optional m4/3 to PL mount or C to F mount for Canon, Pentax, Nikon, etc. |
| Camera Body / Structure |
|---|
| Machined aluminum frame anodized hard coat mat black finish |
| Rubber hand grips |
| Cool running compact efficient modern design |
| Large 7” 1920 x 1080 high definition touch screen. High brightness 2500nit available |
| Easy to hold ergonomic design |

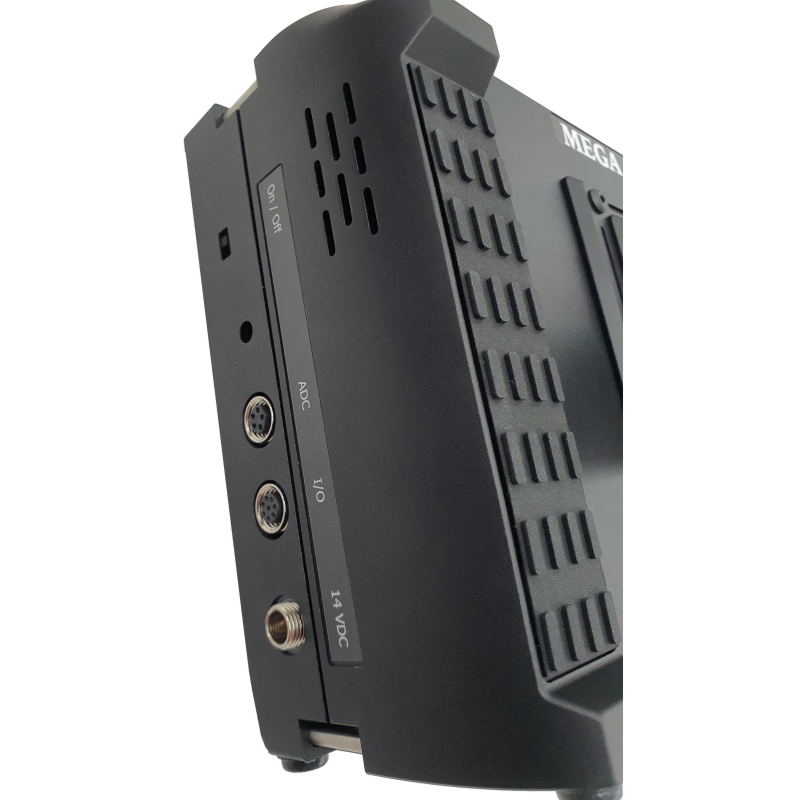

| Convenient multi-pin side connections with single or multi style cable harness |

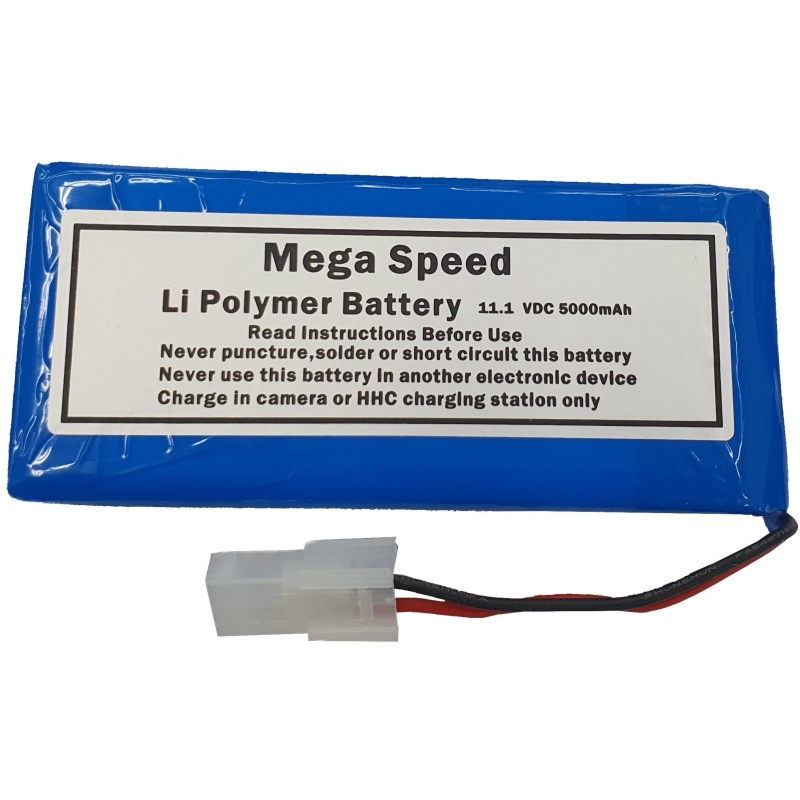

| Removable 5000 mAh battery |
| Frame Rates & Record Times |
|---|
| 1000 fps @ 1920 x 1080. 7.6/15.2 seconds record time 16GB/32GB |
| 1130 fps @ 1280 x 1024 11.4/22.8 seconds record time 16GB/32GB |
| 1600 fps @ 1280 x 720 12/24 seconds record time 16GB/32GB |
| 1900 fps @ 832 x 600 16.4/32.8 seconds record time 16GB/32GB |
| 2400 fps @ 640×480 22/44 seconds record time 16GB/32GB |
| 4800 fps @ 640×240 11.6/23.2 seconds record time 16GB/32GB |
| 38,400 fps @ 640×30 13.7/27.4 seconds record time 16GB/32GB |
| * Note: Maximum speed is only affected by image height. 1920×30 can also be captured at 38,400 fps |
| Trigger Options |
|---|
| 3.3 VDC to 24 VDC via trigger port |
| Dry contact via trigger port |
| Software controlled manual trigger |
| Multiple start/stop trigger mode with auto stop when camera memory is full |
| Pre/post trigger mode with full scale pre and post segment adjustment |
| Single sequence trigger mode |
| Snap-Shot trigger mode for PIV |
| Time Source And Synchronization |
|---|
| By internal system clock |
| By external IRG time clock to camera IRIG port user supplied |
| Sync in to multi pin connector from external clock source or master camera |
| Sync out from multi pin connector from pass through sync source or frame time |
| Sync in to BNC connector from external IRIG source – user supplied |
| 10 ns accurate time propagation delay |
| 3.3 VDC ready out signal when camera is in armed status via multi pin connector |
| Camera Outputs |
|---|
| Ready out via multi pin connector |
| Sync out via multi pin connector |
| Battery charge status LED |

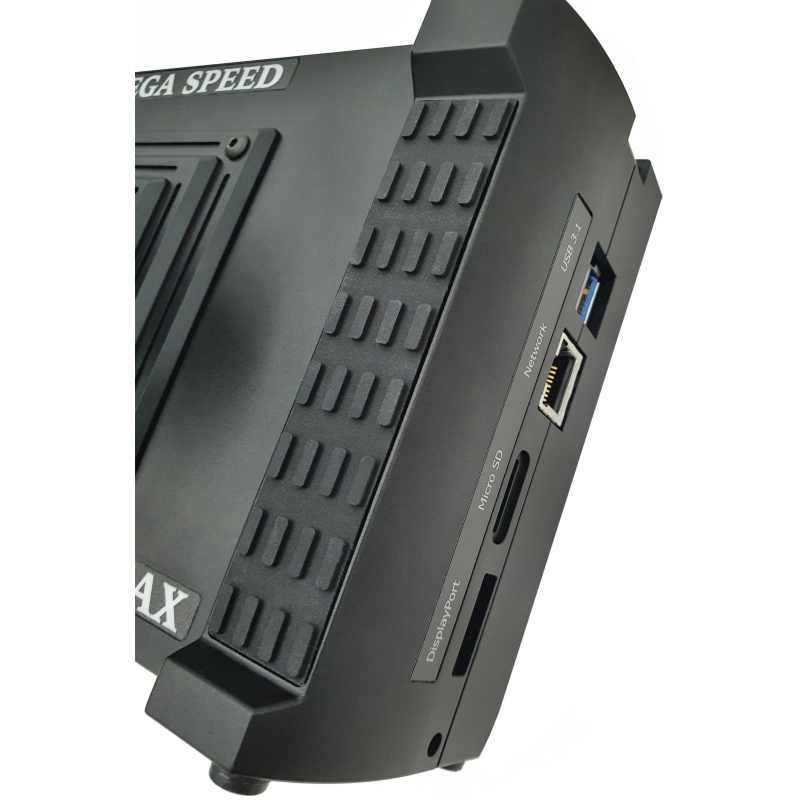

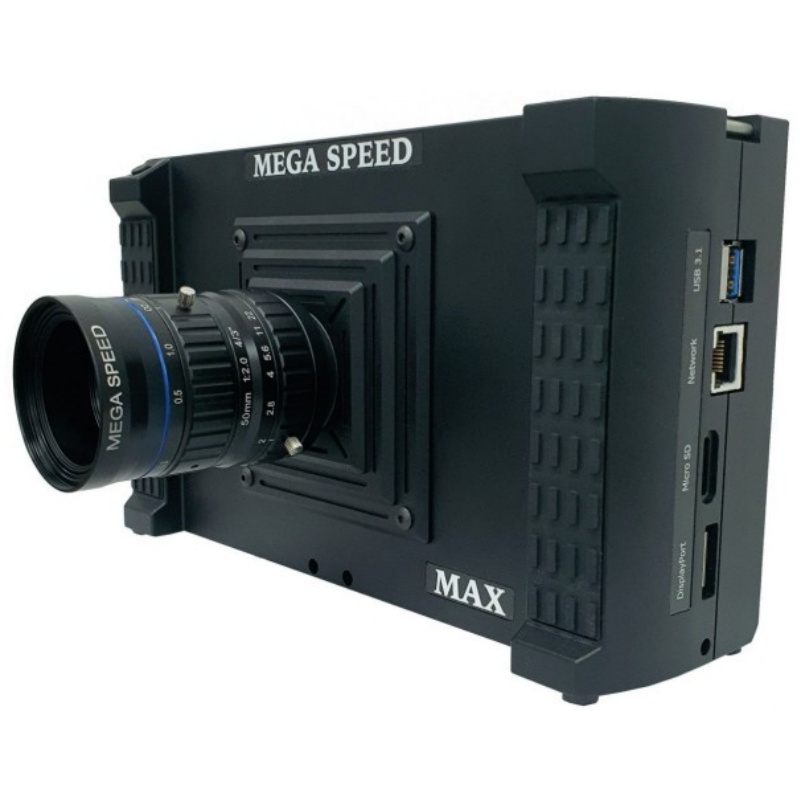

| 2x USB 3 ports |
| RJ45 Gige jack |
| Micro SD slot |
| DisplayPort connector |
| Memory |
|---|
| 16GB or 32GB or internal SD RAM circular recording buffer |
| 1TB High Speed NVME drive. Optional 2TB or 4TB drives |
| Camera Firmware |
|---|
| Remote on-site firmware upgrade enabled |
| Video Editing Software |
|---|
| Mega Speed Media Player |
| Video playback and review |
| Video file clipping and merging |
| Vertical and horizontal cross hair reticules |
| MP4 video compression engine to compress edited files and for file sharing |
| Gamma, auto white balance (color cameras) |
| Image cropping |
| Image rotation |
| Image export to JPEG, BMP, TIFF, DNG, AVI, H.264, MP4, RAW, MSV. |
| Video files compatible with other vendors post software |
| Video playback time base adjustment tool |
| Basic object tracking, velocity and distance measurement |
| Multi channel data analysis tools synchronized to video file |
| Image overlay frame stamping with custom notation |
| Camera Size |
|---|
| 2.5″ x 9″ x 5″ |
| Camera Weight |
|---|
| 3.4 lbs with battery and no lens |
| Camera Mounts |
|---|
| 2 bottom1/4 x 20 tpi, threaded and 2 top 1/4 x 20 tpi both threaded 0.250 down |
| Camera Power Requirements |
|---|
| 14 VDC 25 watts from camera brick power supply |
| Internal camera battery |
| Temperature / Shock Rating |
|---|
| -5°C – to +45°C. 25G, 10ms, half sine wave, random |
| Included In The Box |
|---|
| Camera |
| Camera battery |
| 5M dry contact push button pickle switch |
| 4/3” Mega Speed brand lens |
| Soft custom Mega Speed brand camera bag. |
| 14 VDC camera power supply to charge the camera or run the camera |
| Post processing Mega Speed Media player software |
| Sensor cleaning swab |
| Soft custom Mega Speed camera bag. |
| Installation USB stick with install software and owner’s manual |
| Available As An Option |
|---|
| Color or monochrome image sensor |
| 3.3 VDC Mega Speed trigger box |
| Gigabit Ethernet connection |
| Solid state drive size (2TB or 4TB) |
| Micro four third mount, C-F mount for Nikon, Canon, Pentax |
| Spare camera battery |
| 4 channel ADC patch cable |
| Lenses with various focal lengths ( 16mm/25mm/35mm/50mm etc.) |
| Tri-pod |
| Various LED work light kits |
| Magic arm |
| 50W Fiber optic goose neck LED light |
| Mega Speed laser cut foam case |
| Medusa I/O cable set (trigger/marker/IRIG/Sync in/Sync out/Ready) |
| 128GB Super Speed USB stick |
